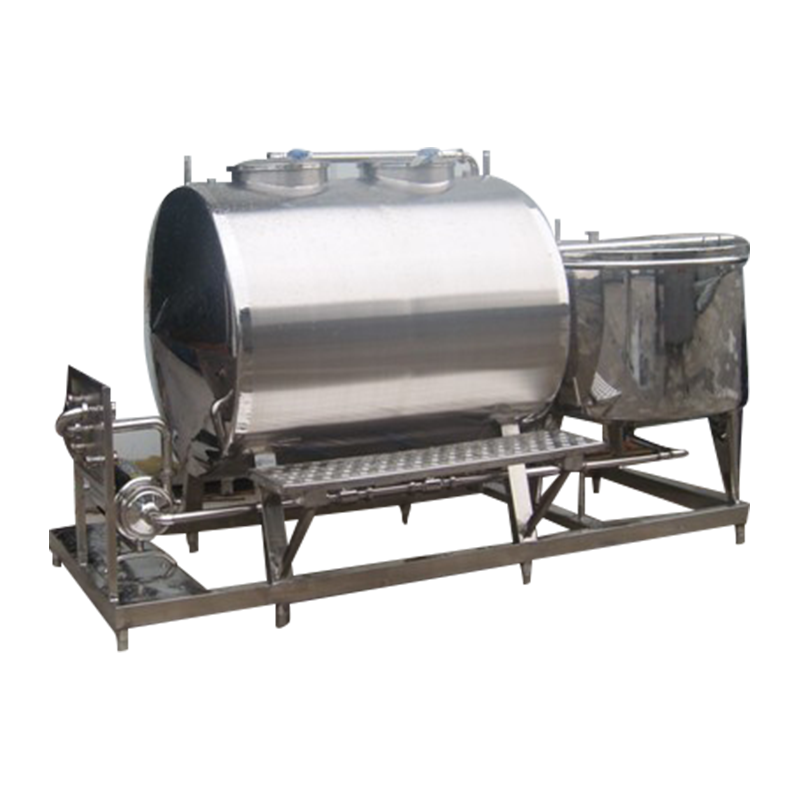

Small CIP Cleaning System for Food Processing

The system comprises the following primary elements:
Pure water tank
Acid liquid tank
Alkali liquid tank
Centrifugal pump
Accessory parts (piping, valves, and control units)

Working Principle:
The CIP system operates by using a centrifugal pump to deliver cleaning solutions (acid, alkali, and pure water) at high pressure through the pipelines, filling valves, and tanks. The sequential washing process ensures thorough sterilization and cleaning of the inner surfaces. This method eliminates the need for dismantling the production line, significantly reducing downtime and enhancing operational efficiency.

Features of the CIP System:
Operational Flexibility: The system can be operated manually or via computer control, allowing precise management of sterilizing and cleaning cycles.
Resource Efficiency: Cleaning solutions are recyclable, minimizing waste and reducing energy consumption.
Steam Heating: The cleaning liquids are heated using steam, ensuring optimal temperature for effective cleaning.
Temperature Control: The system maintains the cleaning liquid temperature within a preset range, ensuring consistent performance.
Durable Construction: The entire unit is constructed from 304 stainless steel, providing corrosion resistance and longevity in food processing environments.

Applications:
This CIP system is ideal for use in beverage, dairy, and other liquid food processing industries, where maintaining hygiene and operational efficiency is critical.
